Spark Concrete Mixer Pump
Concrete mixer pump integrates concrete feeding, mixing and conveying functions seamlessly in one concrete pump machine, the concrete mixer pump can be driven by diesel engine. It is widely used for continuously concrete mixing and conveying through high hydraulic pressure along the pipeline in such applications as housing building, bridge or tunnel construction.
The concrete mixing pumps produced by our factory are usually divided into motor power and diesel engine power, which can be selected according to actual needs.

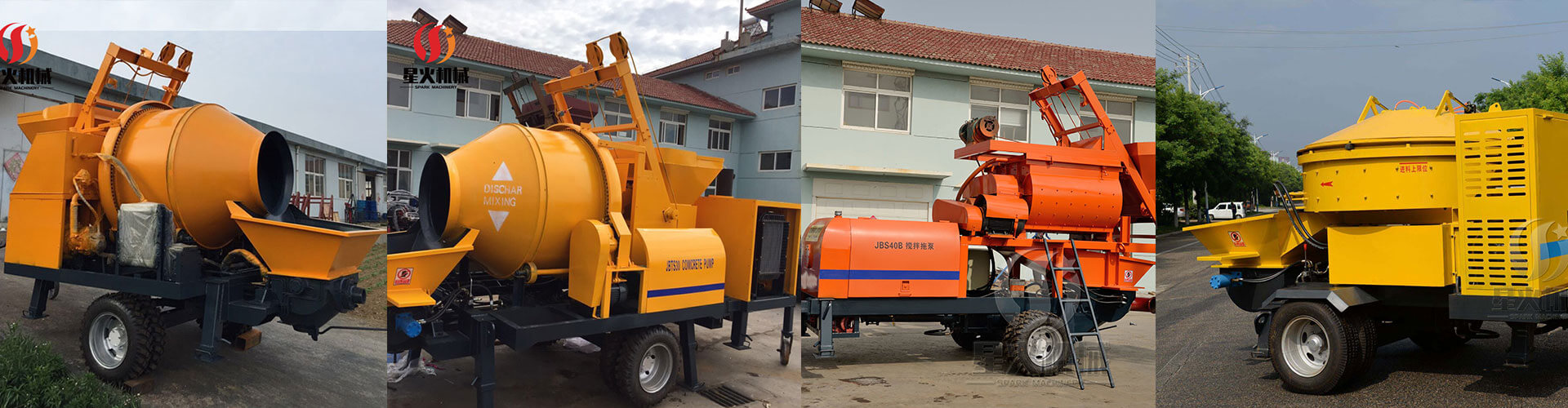

Types of spark Concrete Mixer Pumps for sale
Concrete mixing pumps can mix cement, sand, gravel, water and other raw materials in a certain proportion, and then transport them directly to the construction area through a pumping system, greatly improving construction efficiency.
Application range:

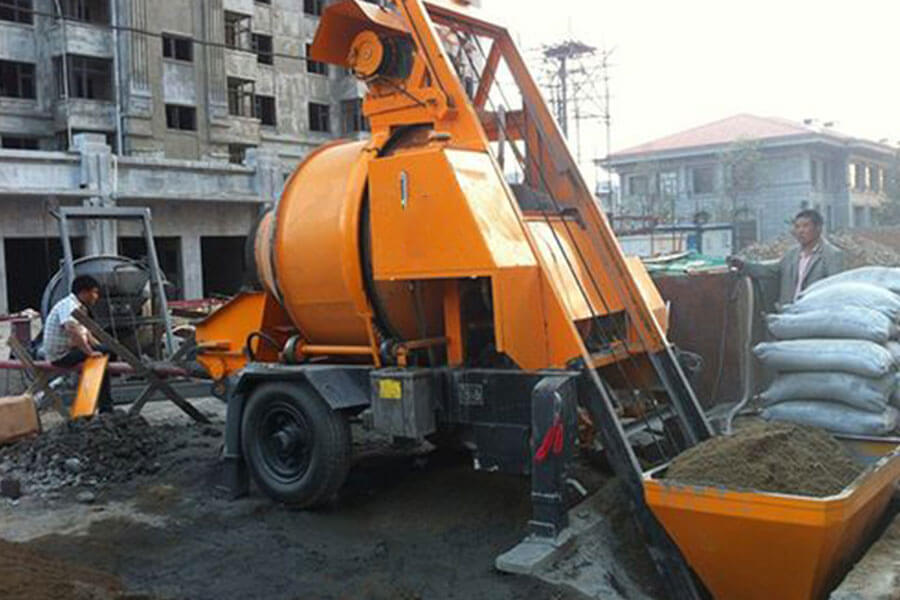

Construction: Suitable for various construction occasions, such as residential buildings, commercial buildings, factories, etc.
Road and bridge construction: In road and bridge construction, concrete mixing pumps are used to transport concrete for road paving, bridge construction and other operations.
Water conservancy projects: In water conservancy project construction, concrete mixing pumps are used to transport concrete for the construction of dams, embankments, channels and other structures.
Foundation engineering: In foundation engineering, such as pile foundations, caps, etc., concrete mixing pumps are used to transport concrete for pouring.
What is a Concrete mixer Pump?
Concrete mixer pump is an efficient and reliable construction equipment, suitable for various construction occasions that require on-site mixing and conveying of concrete. Its integrated design and high mobility make it an important tool in the field of modern construction and engineering.
Structural composition:
Mixing system: It consists of a mixing drum, mixing blades, transmission devices, etc., and is responsible for mixing raw materials such as cement, sand, gravel, water, etc. into uniform concrete.

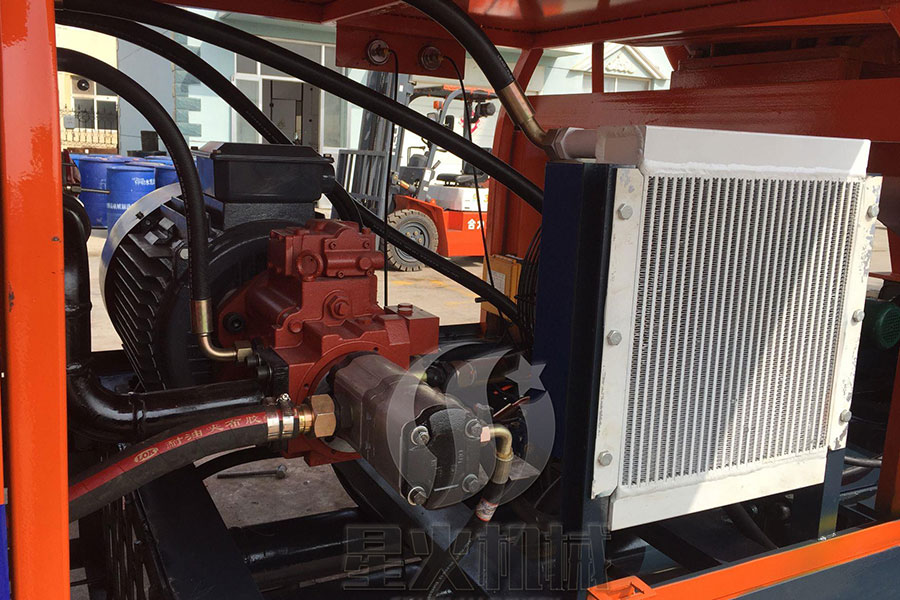

Pumping system: It consists of a pump body, a delivery pipe, a hydraulic system, etc., and is responsible for delivering the mixed concrete to the designated location. The pumping system is usually hydraulically driven and has a high delivery pressure and efficiency.
Power system: It can be an electric motor or a diesel engine, which provides power to drive the mixing and pumping system. Electric motors are suitable for occasions with a stable power supply, while diesel engines are suitable for remote areas or environments with unstable power.

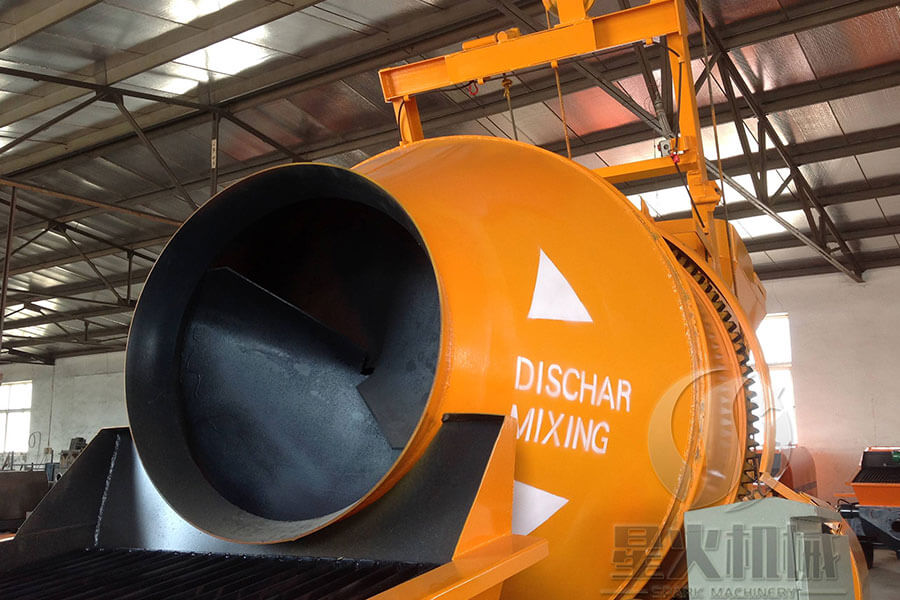

Mixing drum

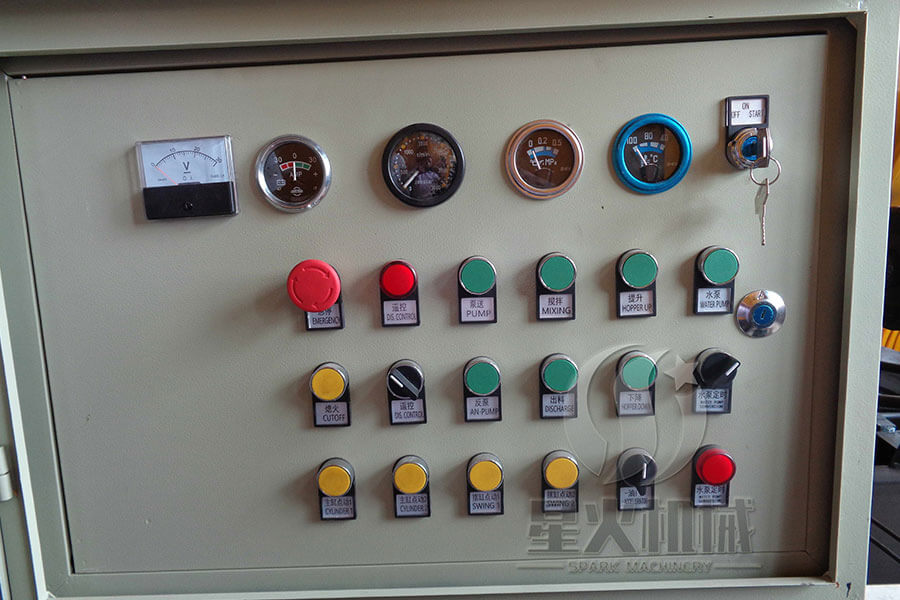

Control system
Power system

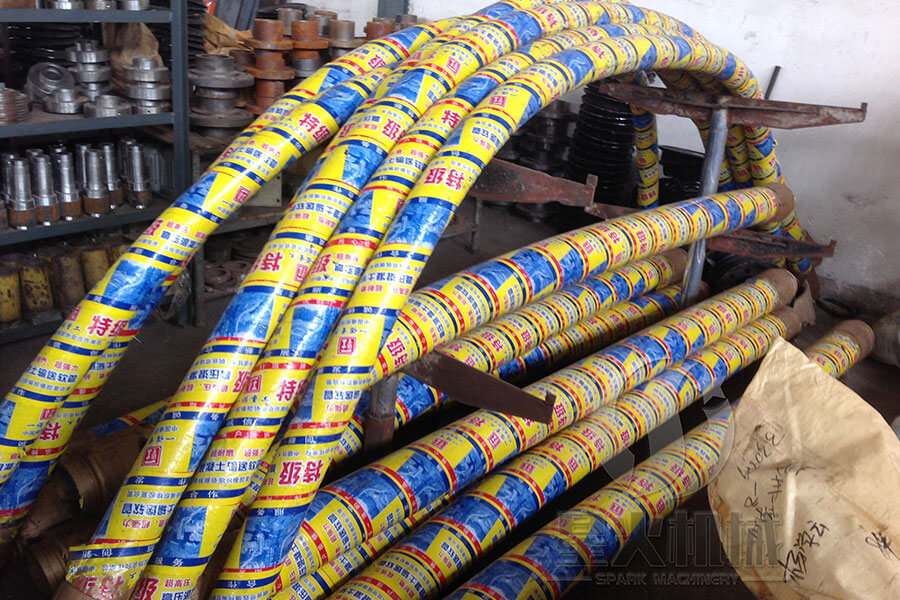

Pipeline
The aggregate will be lifting to the mixer hopper, then transported to the concrete mixer first, after mixed, then mixed concrete discharging to the concrete pump hopper, then the hydraulic system will put the hydraulic cylinder working, the hydraulic cylinder push the concrete cylinder one is suction, one is pump, working one by one to pump the concrete to long or high distance

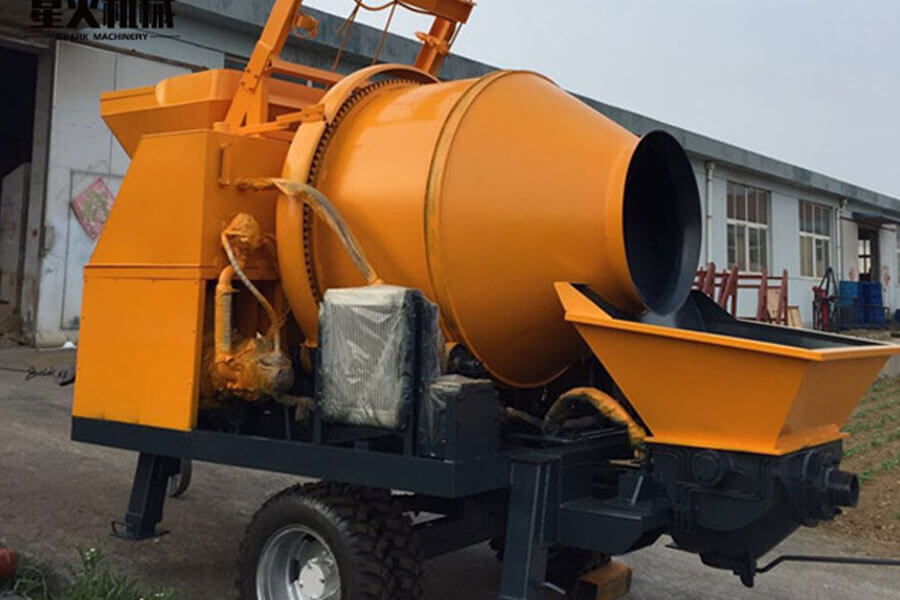

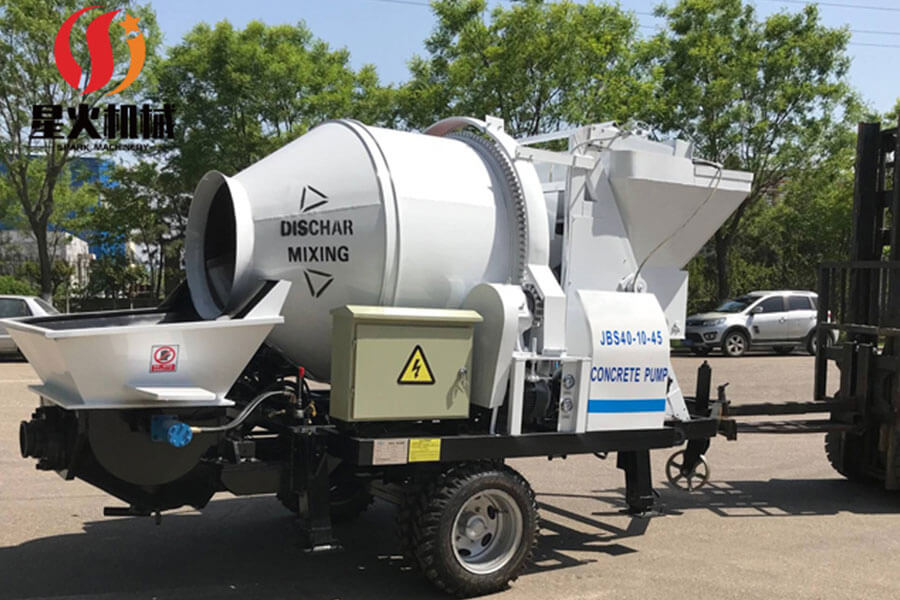

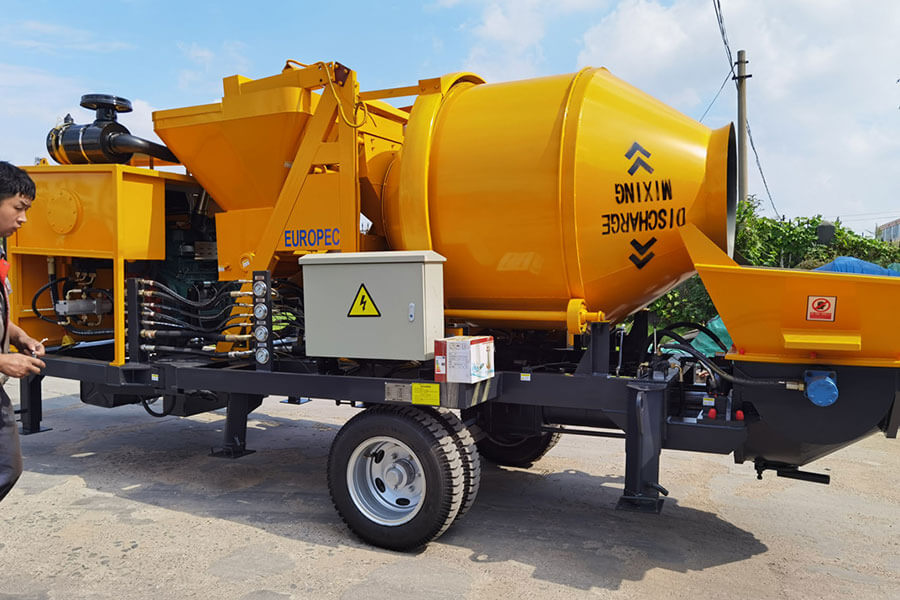

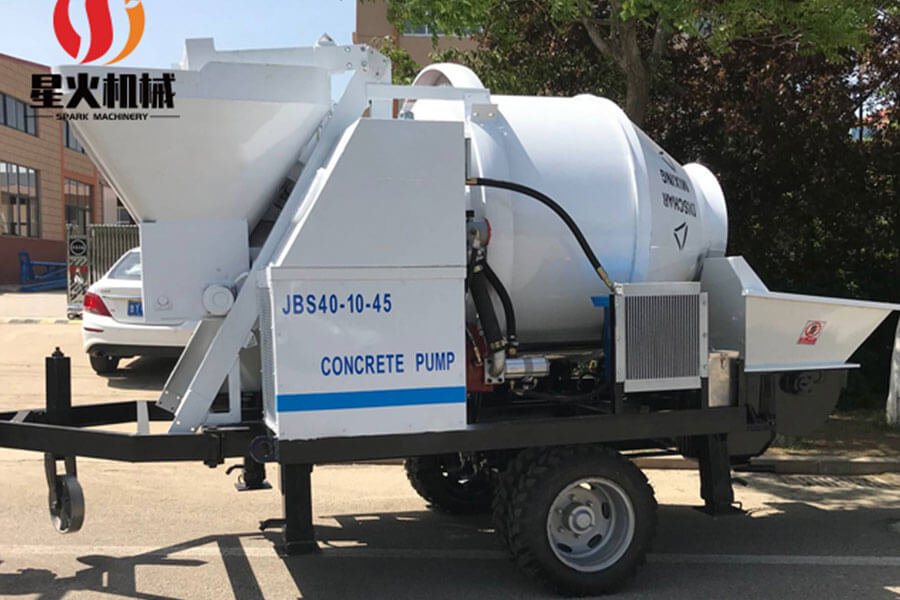

Motor powered concrete mixer pump for sale
Electric concrete mixer pump is a kind of mechanical equipment that integrates concrete mixing and pumping functions, mainly relying on electric motor as power source. It is widely used in building construction, foundation engineering, road construction and other fields, especially in construction sites with stable power supply.
Model: JBS30、JBS40
Capacity: 30-40m³/h
Power: 37-45kw
Power source: The electric motor is used as the power source to drive the mixing and pumping system through electricity. The motor starts quickly and has good speed regulation performance, which is suitable for frequent starting and stopping conditions.
Integration of mixing and pumping: The electric concrete mixing pump combines the mixing and pumping functions together, which can complete the mixing and delivery of concrete at one time, simplifying the construction process and improving construction efficiency.
The electric concrete mixing pump has low noise and low emissions during operation, which meets modern environmental protection requirements. It is especially suitable for use in cities and areas with high environmental protection requirements.
advantages of Motor powered concrete mixer pump
1.Environmental protection and energy saving: low noise and low emissions during operation, in line with environmental protection standards. The motor is highly efficient and has low energy consumption.
2.Easy operation: The motor starts quickly, has good speed regulation performance, is easy to operate, and is suitable for frequent starting and stopping conditions.
3.Low maintenance cost: The motor has a simple structure, low maintenance and servicing costs, and does not require frequent replacement of engine oil and filter elements.
4.Strong mobility: It is usually installed on a car chassis or trailer, has good mobility, and can be easily moved from one construction site to another.
Parameters of Motor powered concrete mixer pump
| Concrete Mixer Pump Model | JBS30 | JBS40 |
| Max Theoretical Conveying Capacity | 30m³/h | 40m³/h |
| Max Exit Pressure | 10Mpa | 11Mpa |
| Form of Distribution Valve | S tube valve | S tube valve |
| Oil Tank Volume | 250L | 400L |
| Exit Diameter | 100mm | 150mm |
| Max Aggregate Size | 30mm | 40mm |
| Towing Speed | ≤8km/h | ≤8km/h |
| Max Vertical Conveying Distance | 120mm | 120mm |
| Max Horizontal Conveying Distance | 300mm | 300 |
| Weight | 4500kg | 5200kg |
| Dimension | 4200*2300*2600mm | 5800*2300*3600mm |
If the above parameters do not meet your production needs, you can contact us to let us know your specific requirements and we will design a unique solution and quotation for you.

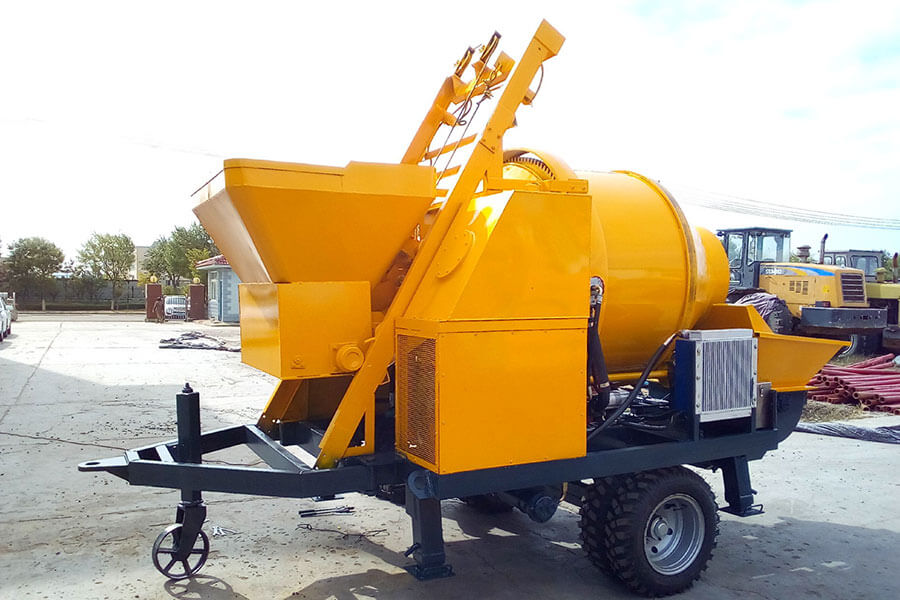

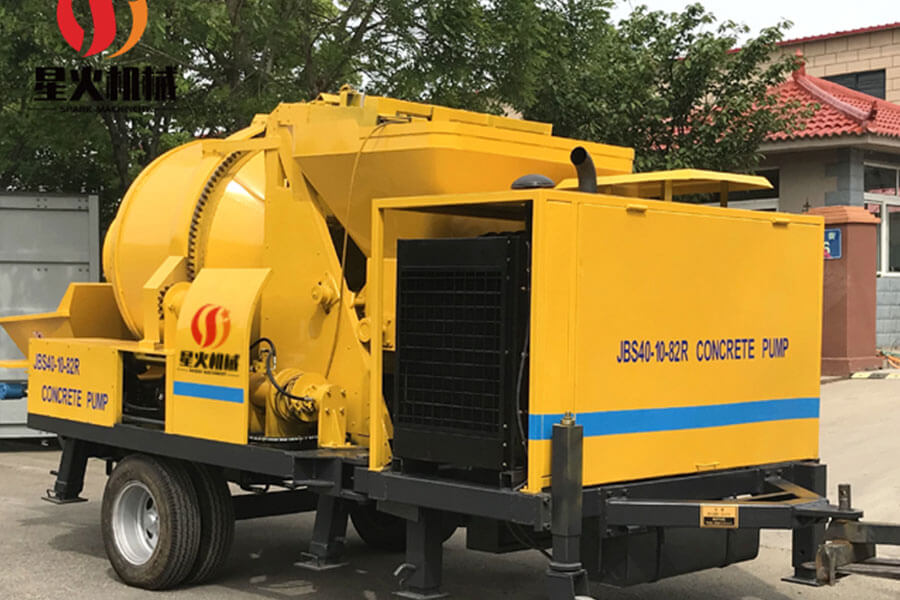

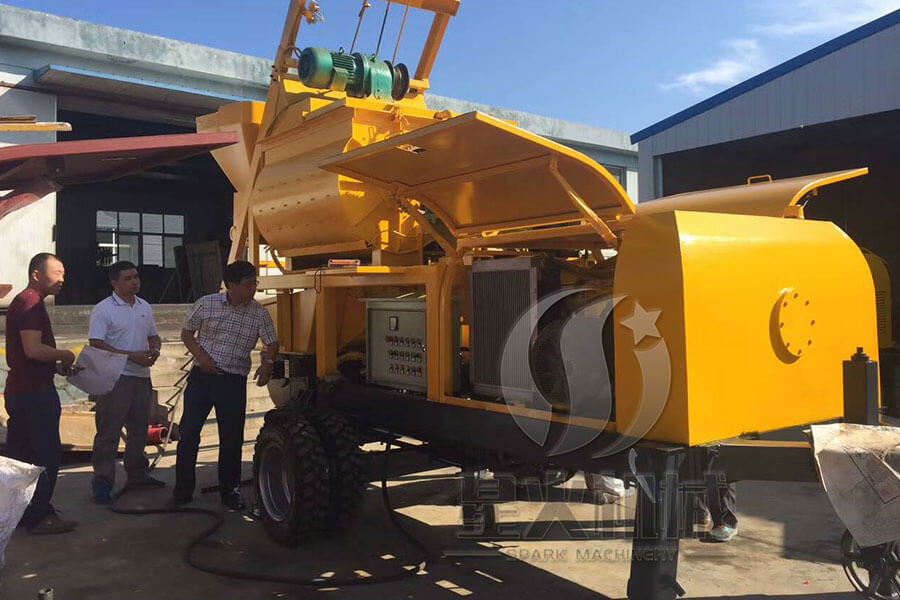

Diesel engine concrete mixer pump for sale
Diesel concrete mixer pump is a kind of mechanical equipment that integrates concrete mixing and pumping functions, mainly relying on diesel engine as power source. It is particularly suitable for sites where power supply is unstable or cannot be provided, such as remote areas or field projects.
Model: JBS-R30、JBS-R40
Capacity: 30-40m³/h
Engine Power: 66-82kw
The diesel engine is used as the power source, which is powered by burning diesel. Diesel engines usually have a higher torque output and are suitable for heavy loads and long-term continuous work.
The diesel concrete mixer pump is a powerful and independent construction equipment suitable for various large-scale construction projects and construction in remote areas. Its powerful power output and durability enable it to perform well in harsh construction environments.
advantages of Diesel engine powered concrete mixer pump
1.Strong power: Diesel engines have high power and torque output, suitable for heavy loads and long-term continuous work.
2.Strong mobility: Usually installed on a car chassis or trailer, it has good mobility and can be easily moved from one construction site to another.
3.Strong independence: It does not rely on external power supply and is suitable for use at construction sites with unstable power supply.
4.High durability: The diesel engine has a sturdy structure, is wear-resistant, and is suitable for harsh construction environments.
Parameters of Diesel engine powered concrete mixer pump

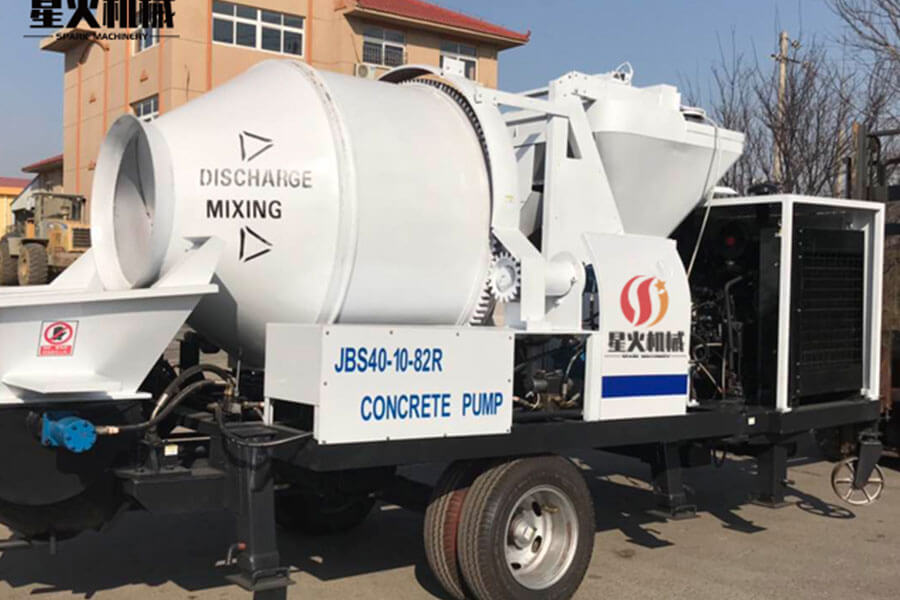

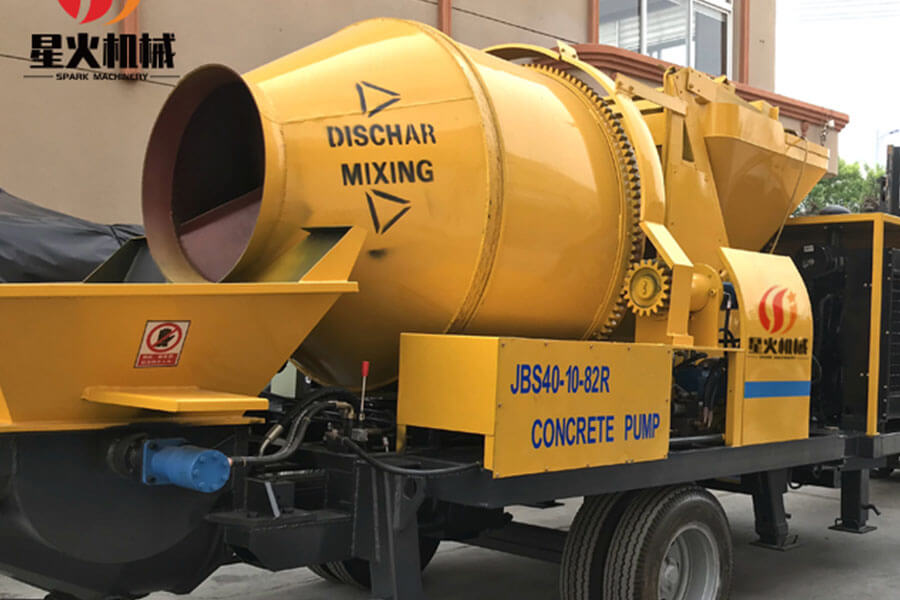

| Model | JBS30-10-66R | JBS40-10-82R |
| Pump Max. thero. concrete output | 15-30m³/h | 15-40m³/h |
| Charging (hopper )capacity of mixer | 0.56m³ | 0.8m³ |
| Discharging capacity of mixer | 0.35m³ | 0.5m³ |
| Max.concrete pumping pressure | 10Mpa | 10Mpa |
| Distribution valve type | S valve | S valve |
| Concrete cylinder diameter stroke | Ф140×1100mm | Ф180×1000mm |
| Hopper capacity | 400L | 600L |
| Outlet diameter | Ф100mm | Ф125mm |
| Engine power | 66kw | 82kw |
| Rotate speed | 2300r/min | 2300r/min |
| Circuit type | Open circuit | Open circuit |
| Pumping system pressure | 28Mpa | 31.5Mpa |
| Mixing system pressure | 6-8Mpa | 6-8Mpa |
| Dimension | 5500x2300x3150mm | 6000x2300x3150mm |
| Weight | 5500kg | 6000kg |
If the above parameters do not meet your production needs, you can contact us to let us know your specific requirements and we will design a unique solution and quotation for you.

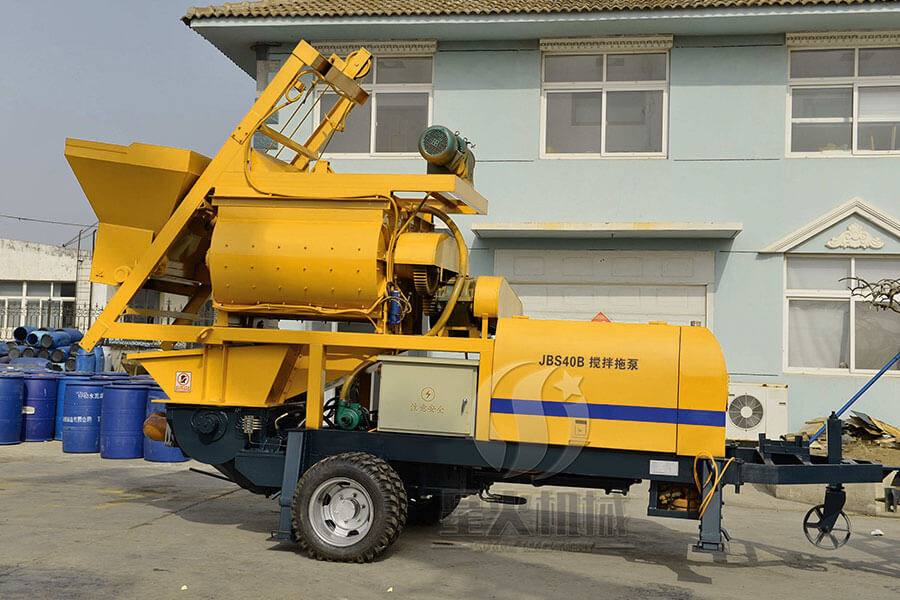

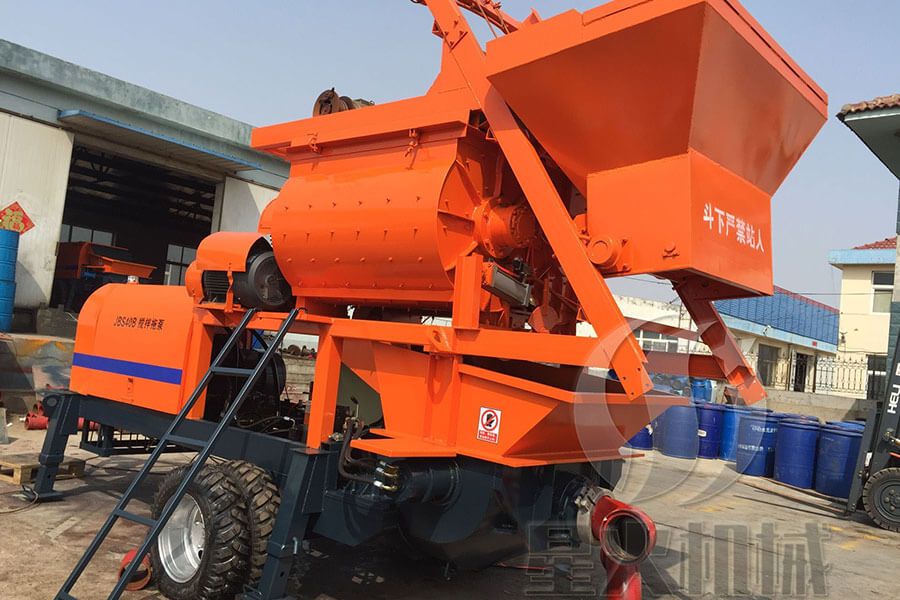

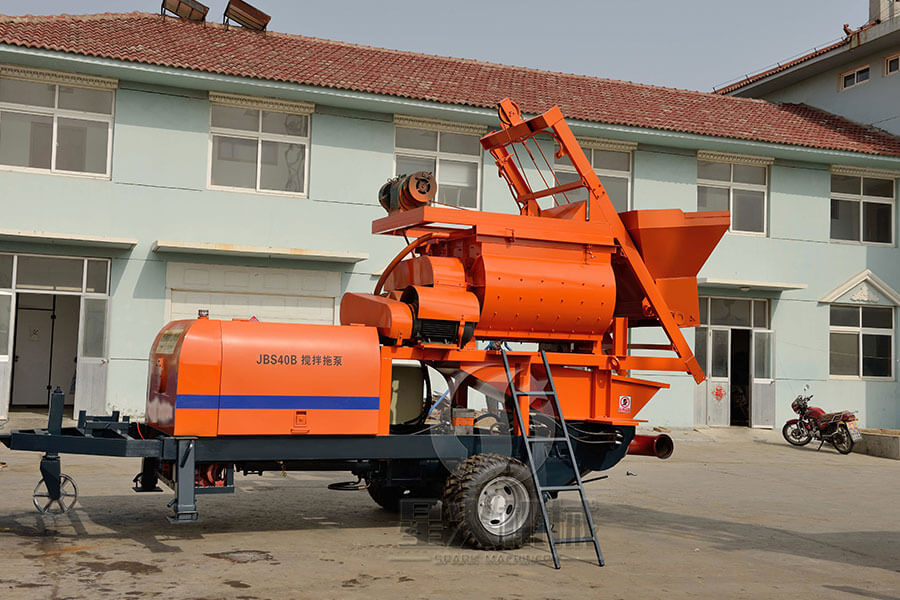

js series concrete mixer pump for sale
JS series twin-shaft concrete mixer pump is a highly efficient and advanced construction machinery and equipment, integrating concrete mixing and pumping functions. It is widely used in various building construction, bridge engineering, road construction and other occasions that require high-quality concrete.
Model: JBS40-JS500-129R
Capacity:40m³/h
Power: 129kw
Twin-shaft mixing technology: The JS series mixing pump adopts a twin-shaft forced mixer, and the mixing blades are arranged in a spiral shape, which can strongly mix the concrete raw materials to ensure the uniformity and consistency of the concrete. The twin-shaft design can effectively improve the mixing efficiency and reduce the mixing time.
High efficiency and energy saving: The JS series mixing pump adopts a high-efficiency motor and hydraulic system, which has a high energy efficiency ratio, can effectively reduce energy consumption and save operating costs.
Automatic control: The JS series mixing pumps produced by our factory are equipped with advanced automatic control systems, which can accurately control the mixing and pumping process, including mixing time, pumping speed, pressure and other parameters to ensure construction quality and efficiency.
advantages of js series concrete mixer pump
1.Even mixing: Twin-shaft forced mixing technology can ensure the uniformity and consistency of concrete.
2.High efficiency and energy saving: High-efficiency motors and hydraulic systems have a high energy efficiency ratio and can effectively reduce energy consumption.
3.High degree of automation: Advanced automated control systems can accurately control the mixing and pumping process to ensure construction quality and efficiency.
4.Strong mobility: Usually installed on a car chassis or trailer, it has good mobility and can be easily moved from one construction site to another.
Parameters of js series concrete mixer pump
| Items | Parameters | |
| Whole performance of machine | Max. theo. concrete output | 40m³/h |
| Concrete mixer Capacity | 25m³ | |
| Concrete mixer feeding | 0.8m³ | |
| Concrete mixer discharging | 0.5m³ | |
| Max.concrete pumping pressure | 8Mpa | |
| Distribution valve type | S Valve | |
| Concrete cylinder diameter×stroke | Ф200×1000mm | |
| Hopper capacity | 600L | |
| Outlet diameter | Ф180mm | |
| Power system | Diesel engine model | Weichai |
| Electrical engineering power | 129kw | |
| Rotate speed | 2200r/min | |
| Other Information | Max. aggregate diameter | 40,50mm |
| Inside diameter of delivering pipe | 125mm | |
| Max aggregate for mixer | 60,80mm | |
| Dimensions | 7500x2300x3150mm | |
| Totally weight | 5000kg | |
If the above parameters do not meet your production needs, you can contact us to let us know your specific requirements and we will design a unique solution and quotation for you.

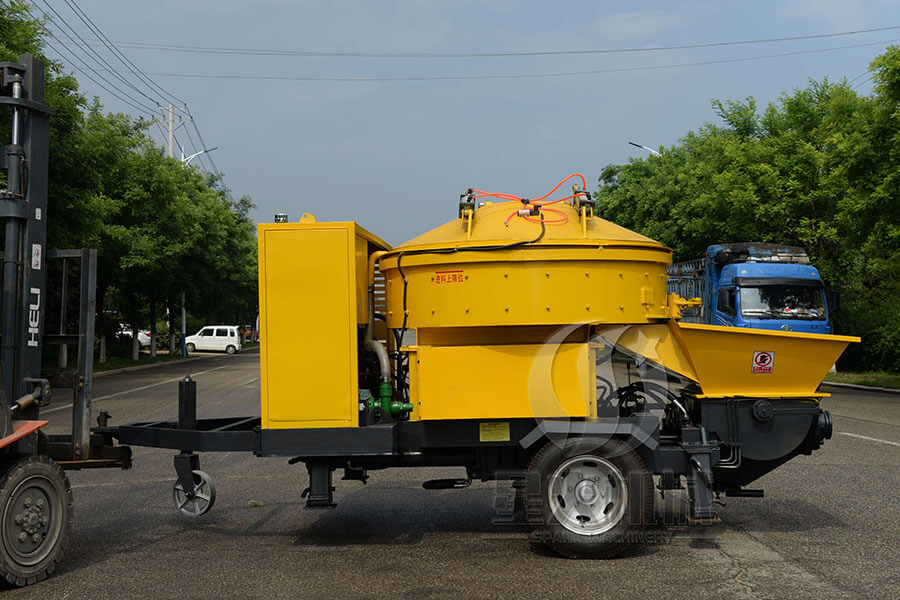

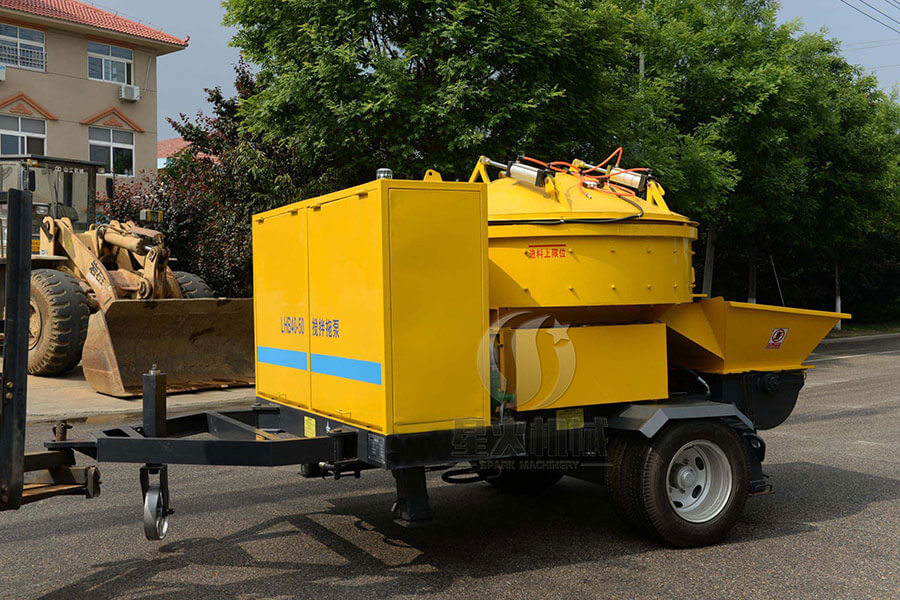

Vertical shaft concrete mixer pump for sale
The vertical shaft concrete mixer pump is an efficient and advanced construction equipment, which adopts a vertical shaft mixing system and the mixing blades are arranged vertically, which can efficiently mix the concrete raw materials. It is suitable for various construction occasions that require on-site mixing and conveying of concrete.
Model: JN-40-129R
Capacity: 40m³/h
Power: 82kw
Vertical shaft mixing technology: The vertical shaft mixing pump adopts a vertical shaft mixing system, and the mixing blades are arranged vertically, which can efficiently mix the concrete raw materials. The vertical shaft design makes the mixing process more uniform, the mixing efficiency is high, and the mixing time can be effectively reduced.
Integration of mixing and pumping: The equipment combines the mixing and pumping functions together, and can complete the mixing and delivery of concrete at one time, simplifying the construction process and improving construction efficiency. It is especially suitable for construction sites that require on-site mixing and delivery of concrete.
Compact structure: The vertical shaft mixing pump has a compact structure design and a small footprint, which is suitable for use in construction sites with limited space.
advantages of Vertical shaft concrete mixer pump
1.High production efficiency: vertical shaft concrete mixer with large mixing capacity, good mixing effect and strong production capacity.
2.Strong pumping capacity: double cylinder full hydraulic design can provide stable concrete delivery capacity, suitable for various engineering needs.
3.Wear-resistant and corrosion-resistant: the bottom, side and mixing blades of the mixer are equipped with wear-resistant lining to extend the service life of the equipment.
4.Small footprint, easy operation and flexible movement at the construction site.
Parameters of Vertical shaft concrete mixer pump
| Vertical shaft concrete mixer pump | ||
| Concrete pump | Theoretical capacity(m³/h) | 40 |
| Max. concrete pumping pressure(Mpa) | 10 | |
| Power type | Motor | |
| Motor/engine(kw) | 82 | |
| Main oil pump capacity(ml/min) | 112 | |
| Theoretical delivery distance(m) | 160/500 | |
| Hopper capacity(L) | 550 | |
| Max. aggregate diameter(mm) | 30/40 | |
| Inside diameter of delivery pipe(mm) | Φ150 | |
| Loading capacity of the mixer(L) | 720 | |
| Unloading capacity of the mixer(L) | 450 | |
| Mixing motor(kw) | 5.5 | |
| Hoisting motor(kw) | 4.5 | |
| Dimension(LxWxH)(mm) | 4800x2200x2800 | |
| Total weight(kg) | 5500 | |
| Mixer | JW750/1000 | |
| Concrete mixer | Capacity(m³/h) | 35/50 |
| Mixer type | Forced mixer | |
If the above parameters do not meet your production needs, you can contact us to let us know your specific requirements and we will design a unique solution and quotation for you.

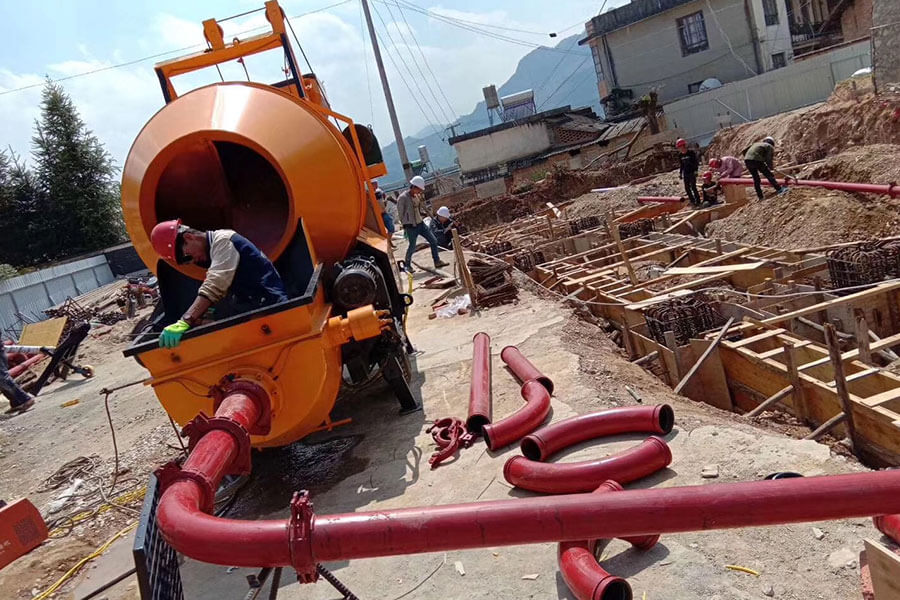

Application Areas
Concrete mixing pumps are widely used in various buildings and construction occasions, especially suitable for small and medium-sized projects: rural and urban self-built houses, small construction sites, road and bridge construction, water conservancy projects, tunnels and underground projects, temporary projects, decoration projects, etc.
Spark concrete pump Price List
| Types | Price range |
| Motor powered concrete mixer pump | $15,000-$25,000 |
| Diesel engine powered concrete mixer pump | $15,000-$30,000 |
| JS series concrete mixer pump | $20,000-$50,000 |
| Vertical shaft concrete mixer pump | $25,000-$50,000 |
The price you pay depends on the line, machine and capacity you choose. The more equipment you choose and the greater the capacity, the higher the price you need to pay.
We also offer tailor-made solutions. If you are preparing a concrete mixer pump, feel free to contact us for a customizable planning design and detailed price tag.
